BESSEY Horizontal clamp STC-HA20 with up to 1100 N Clamping force

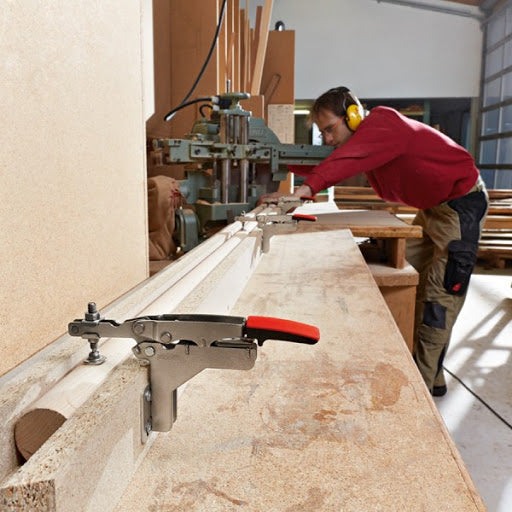

The BESSEY STC-HA20 horizontal toggle clamp with open arm and angled base plate offers maximum flexibility during mounting – ideal for applications where a horizontal base plate does not fit. Thanks to the automatic, stepless adjustment of the opening, it is ready for immediate use. Made in Germany.

Product features

• Angled base plate – For flexible mounting on fixtures and assemblies
• Lever is horizontal in the clamping position – Space-saving design
• Automatic, stepless adjustment of the opening up to 35 mm – Ready for immediate use without manual adjustment
• Adjustable clamping force up to 1,100 N – Depending on the setting of the adjusting screw in the joint
• Stable, tempered steel sheets – For a long service life
• Base plate hole pattern suitable for millimeter and inch measurements – Universal mounting
• High-quality, oil-resistant 2-component plastic handle – Secure grip even with oil and dirt

Technical data

• Order number: STC-HA20
• Opening: 35 mm
• Automatic adjustment: 20 mm
• Clamping force: up to 1,100 N
• Weight: 0.20 kg
• EAN: 4008158036236

Material / Surface

• Tempered, nickel-plated steel sheet parts
• Galvanized steel spindle
• 2-component plastic handle
• Plastic protective caps
