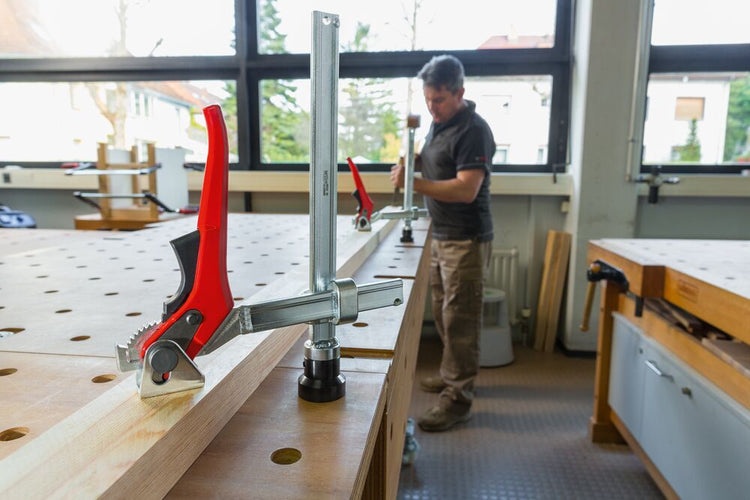

BESSEY Clamping element TWV16, variable throat depth up to 2.500 N for 16 mm hole grid

The BESSEY clamping elements from the TWV16 series are the professional solution for precise positioning and clamping on welding tables with a 16 mm hole pattern. With infinitely variable throat depth from 30 to 150 mm, a clamping force of up to 2,500 N, and three handle options, they offer maximum flexibility for changing clamping tasks in metalworking. Made in Germany.

Product features

  • Clamping force up to 2,500 N – Powerful for demanding clamping tasks in metalworking
  • For 16 mm hole patterns – Suitable for all standard welding tables with 16 mm holes
  • Infinitely variable throat depth 30–150 mm – Maximum flexibility for changing clamping tasks
  • 3 handle options – 2K plastic handle (comfort), tommy-bar handle (power), lever handle with locking mechanism (fast and vibration-resistant)
  • Heat-treated profile and sliding arm – Spring-loaded and elastic clamping for gentle force transmission
  • Tool-free replaceable Pressure plate – Quick replacement without tools
  • Made in Germany – Original BESSEY quality since 1936

Technical data TWV16

Model Pin (mm) Opening (mm) Variable throat depth (mm) Rail (mm) Weight (kg)
TWV16-20-15-2K 16 200 30–150 22x8,5 1,12
TWV16-20-15K 16 200 30–150 22x8,5 1,04
TWV16-20-15H 16 200 60–150 22x8,5 1,21

Applications

  • Welding tables and workbenches – Precise positioning and clamping in a 16 mm hole pattern
  • Metalworking and locksmithing – Reliable for demanding clamping tasks
  • Steel construction and mechanical engineering – Robust construction for the highest loads
